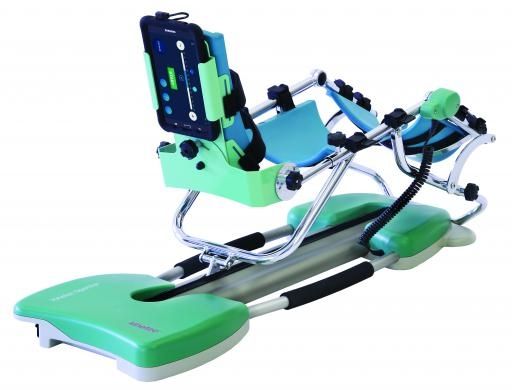

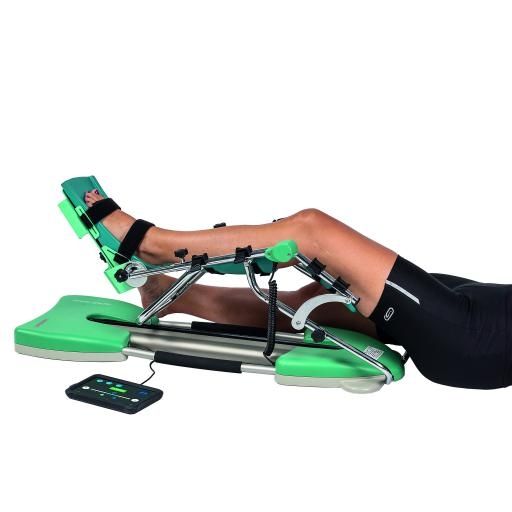

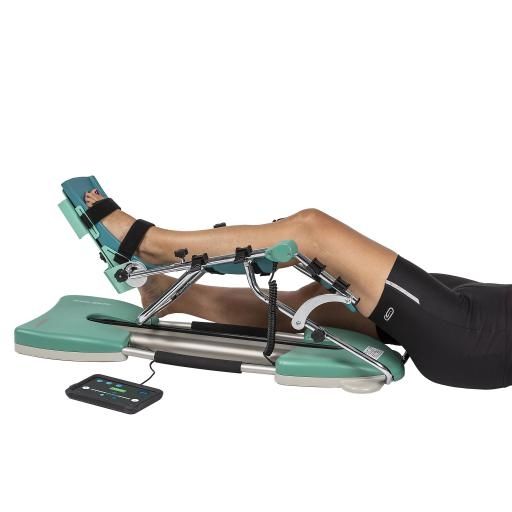

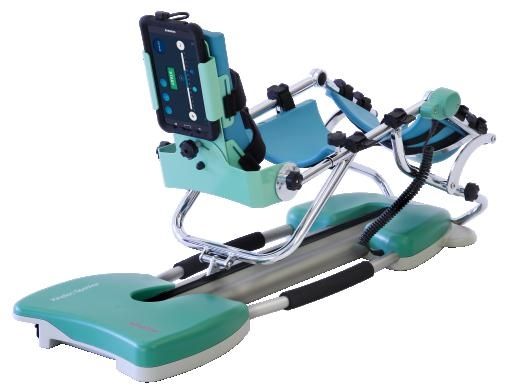

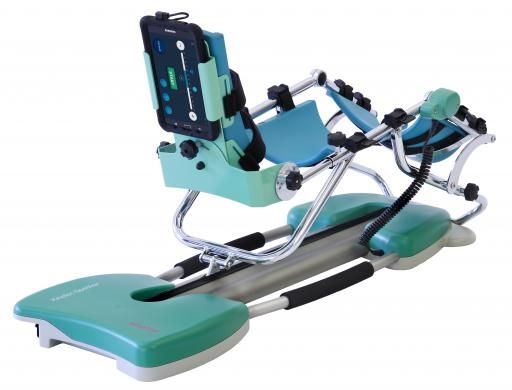

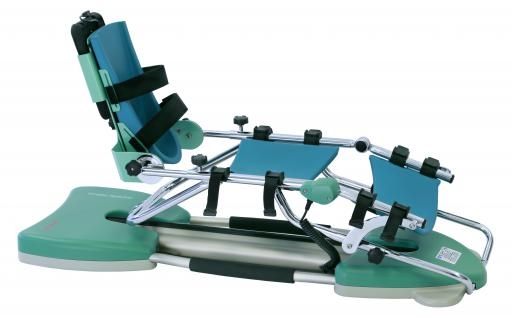

kinetec spectra kompanion knee cpm / including deluxe hygienic pads

DESCRIPTION

Product information

• A perfect combination of an ingenious concept and the latest technology in the service of therapy.
• Characteristics

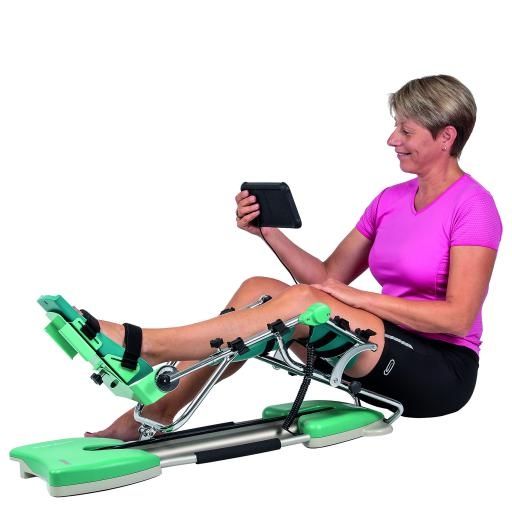

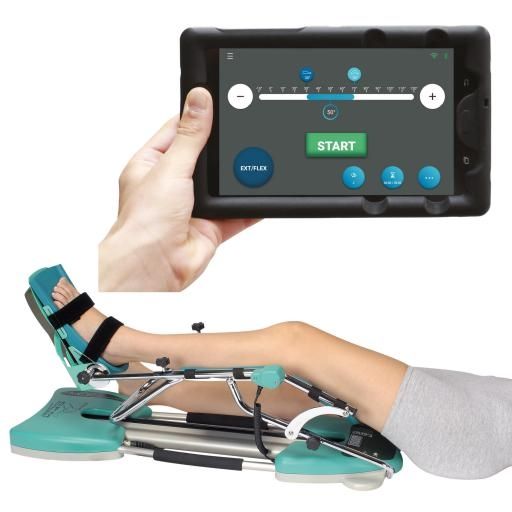

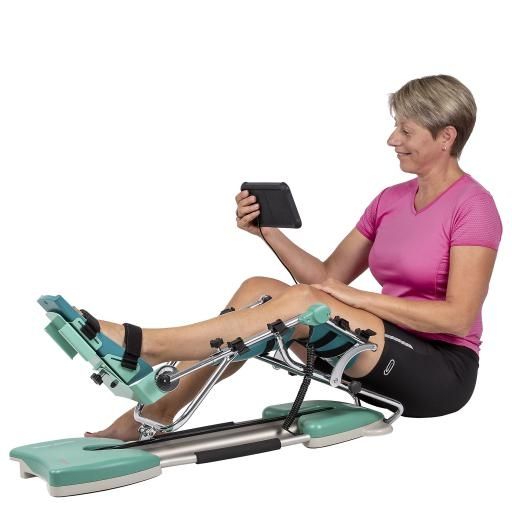

• Remote controlled by a fully touch pad: This splint is controlled by an easy to use touch pad, allowing quick installation and intuitive configuration.

Wide range of movement types:

• Along with the basic functionalities offered by conventional arthromotors (flexion / extension adjustment, flexion / extension pause, speed adjustment, timer) this device also provides a variety of additional movements: a mode '' Spring '', an "Extremity focus" mode, a "Dynamic Stretch" mode as well as an evaluation mode.

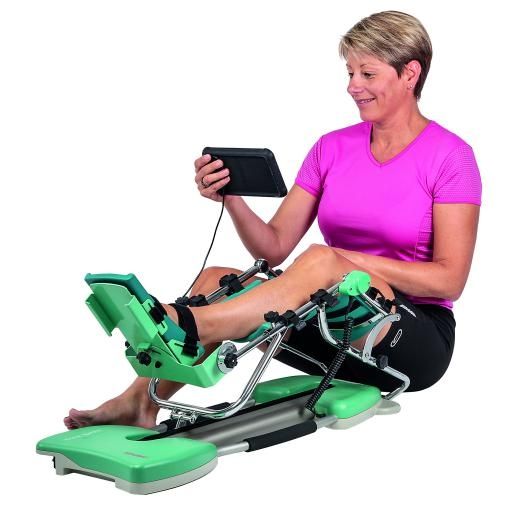

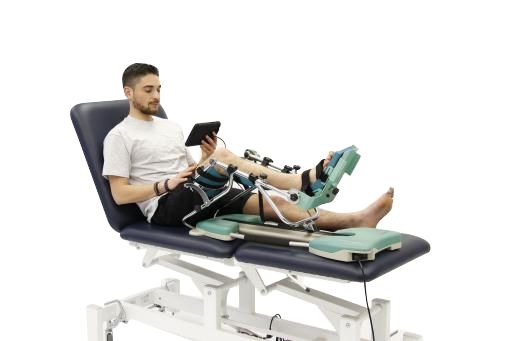

Patient installation mode:

• With one click, the device will automatically position itself on a painless 20 ° amplitude in flexion (fully adjustable amplitude).

Warm-up mode:

• The session starts at 70% of the programmed angular range then increases by 5% for each complete cycle until reaching the maximum programmed amplitude.

Spring mode:

• Allows working more particularly on the maximum angular limits of the patient. The splint will repeat 3 back and forth movements over the last 10 degrees in limit of movement. This mode is fully configurable.

Extremity-focus mode:

• The speed will be minimum during the first 10 and last 10 degrees of movement, then it will be faster during the remainder of the range of movement. This mode is fully configurable.

Dynamic stretch mode (progressive extension):

• Particularly interesting for patients who have difficulty achieving full extension. The splint starts at 15 ° and will extend the leg 1 ° every 10 minutes, until full extension is achieved. This mode is also fully configurable.

Evaluation mode:

• Exercises with 3 levels of counter-resistance allowing the work and the evaluation of the patient's progress. The patient makes 5 or 10 attempts during which he is asked to resist against the device during the flexion movement. This mode is also fully configurable.

Communication with the patient and supervision:

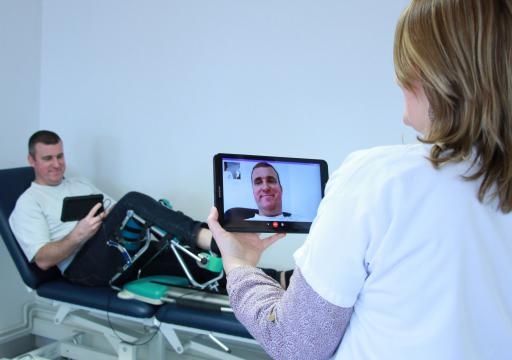

• The healthcare professional can observe and stay in contact with the patient through the video application integrated into the tablet. This is the perfect way to keep in constant contact, ensuring that the exercises are beneficial and performed correctly.

Protocol optimization:

• The device is easily programmable in order to set the ideal programs for the patients.

Latest wireless technology:

• The Spectra Kompanion is equipped with a WiFi connection for remote access by the professional. Its wireless touchscreen tablet works under Android and it is connected to the machine via Bluetooth 4.0 for a secure and stable communication signal.

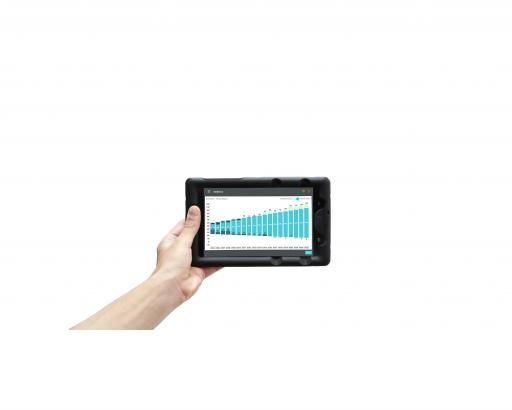

Solid tablet protection:

• The tablet is supplied with a special rubber protection to protect it from any material damage.

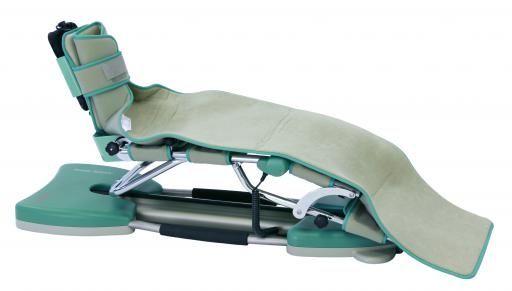

Washable straps and mattresses:

• This version of the Spectra Kompanion comes with a washable hygienic sleeve kit as well as autoclave straps ensuring maximum patient comfort. Change the sleeve kit for each new patient. (Device delivered with: 4x straps, a foot support and a mattress). Choose this version if you wish to use a disposable sleeve kit, to be discarded for each new patient (Consult the list of available accessories).

Optional accessories:

• Several accessories are available including the foot mounted for use in a seated position, a transport trolley and a pediatric board (for mobilizing small patients, minimum leg of 53 cms). Replacement sleeves are also available at an additional cost.
